FLEX-5 · Patent Pending
Tech Specs
- Operating temperature
- 0–50 °C *recommended; many applications run outside this range
- Power requirement

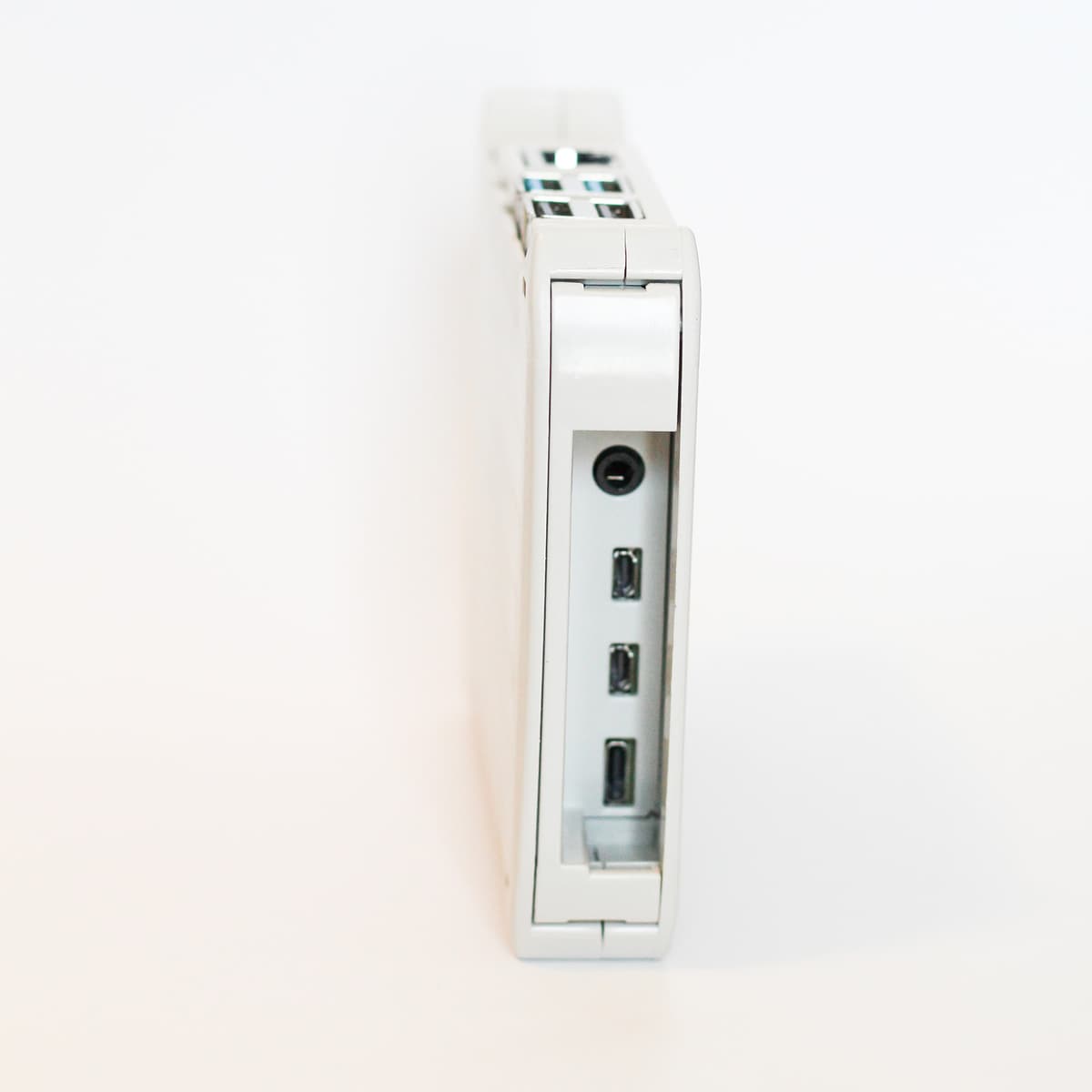

- USB-C (5 VDC / 3 A)
- Dimensions
- W 4" × H 4.75" × D 1"
- Connectivity

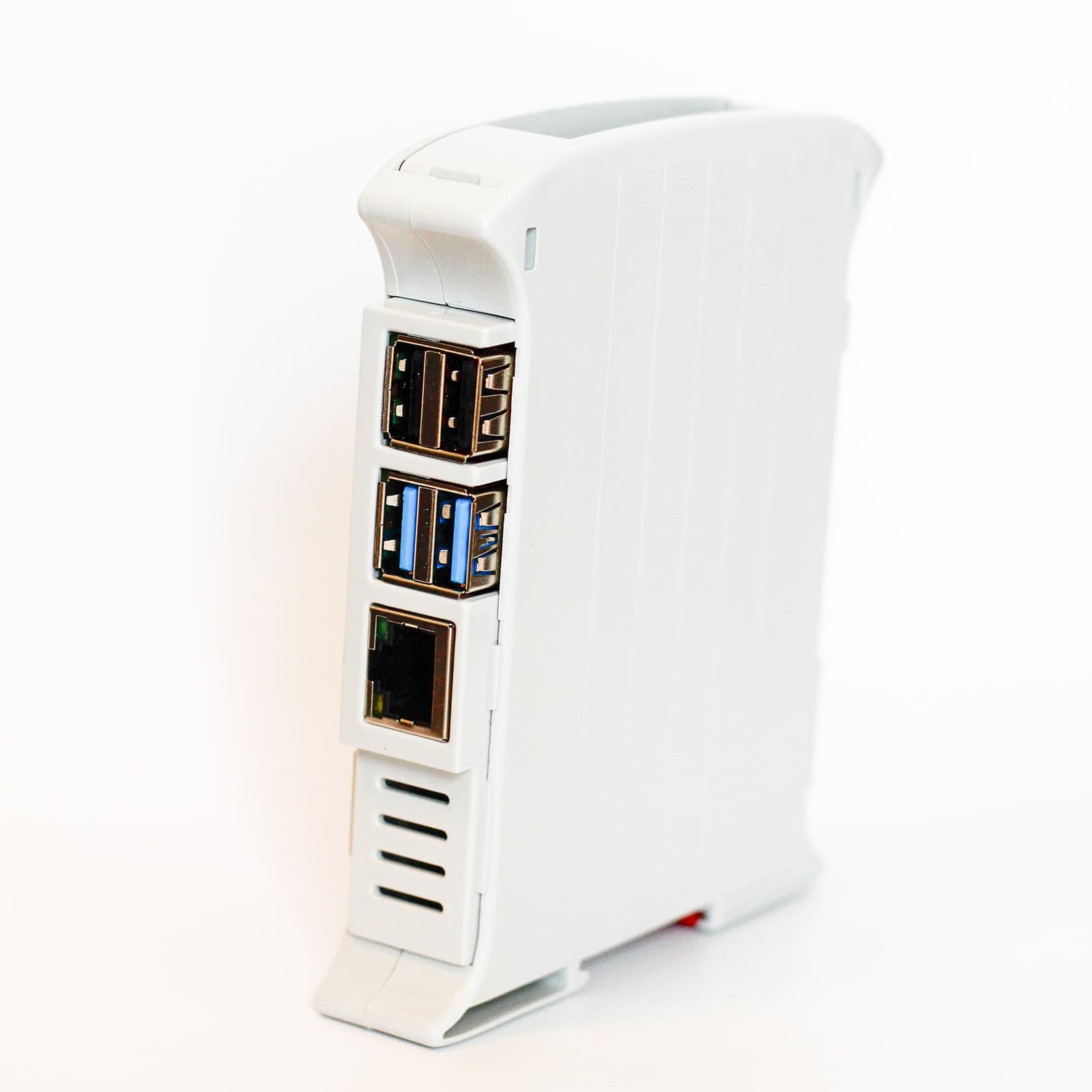

- 2× USB 2.0, 2× USB 3.0, Ethernet port, Bluetooth
- Rating
- IP20
- Cycle time
- 10 ms (typical) / 50 ms minimum with Environment Sound active
Function performance (approximate)
10ms
cycle time without Environment Sound active
50ms
minimum cycle time with Environment Sound active
Software & connectivity
The FLEX-5 is software-defined — here's what it speaks and how you configure it.
- PLC protocol
- EtherNet/IP (Allen Bradley ControlLogix, CompactLogix, Micro800)
- Configuration UI
- Built-in web interface on port 8080, auto-refresh every 5 s
- Audio
- Up to 250 custom MP3 / WAV files, PLC-selectable
- Data export
- CSV + auto-populated Excel (.xlsx) report per batch
- Scanning
- USB and Bluetooth barcode scanners (incl. intrinsically safe)
- Networking
- Static IP for device and PLC, set from the browser
- On-device archive
- Last 30 files / 30 days of CSV and XLSX, downloadable
